前言

覆盖率是衡量测试质量的一个指标,但在版本高速迭代的互联网应用中,单纯通过代码覆盖率的数值是无法体现测试实际覆盖的问题,尤其是版本之间的diff,而且研发也并不会仔细的去看每行代码的覆盖.所以有了覆盖率与git diff结合的想法,通过查看功能测试中版本代码变更的部分是否覆盖,更高效的利用覆盖率,保证变更功能被测试覆盖

覆盖率的收集

覆盖率使用的jacoco 关于jacoco手工测试生成:

• Android 手工测试代码覆盖率增强版

根据q博的方式略做了修改,在应用中加了隐藏开关,并在退出应用时统计覆盖率并上传到服务器.这里用的是ftp,虽然有点过时,但还算方便~
代码很简单,就不贴了.

class文件的收集

jacoco的生成需要对应的class文件,所以需要在编译打包时将class文件上传

dependencies {
    ftpAntTask("org.apache.ant:ant-commons-net:1.8.4") {
        module("commons-net:commons-net:1.4.1") {
            dependencies "oro:oro:2.0.8:jar"
        }
    }
}
def remotedir = "Class/"  //ftp目录
//def hostname = "10.0.100.210"
def hostname = "10.0.0.243"
def username = "uftp"
def password = "111111"

task uploadFTP << {
    //上传至FTP
    remotedir += innerVersion
    ant {
        taskdef(name: 'ftp',
                classname: 'org.apache.tools.ant.taskdefs.optional.net.FTP',
                classpath: configurations.ftpAntTask.asPath)
        ftp(server: hostname,
                userid: username,
                password: password,
                remotedir: remotedir,
                action: 'mkdir')
        ftp(server: hostname,
                userid: username,
                password: password,
                remotedir: remotedir) {
            fileset(dir: "./build/intermediates/classes") {
            }
        }
    }
}

在jenkins上覆盖率报告生成

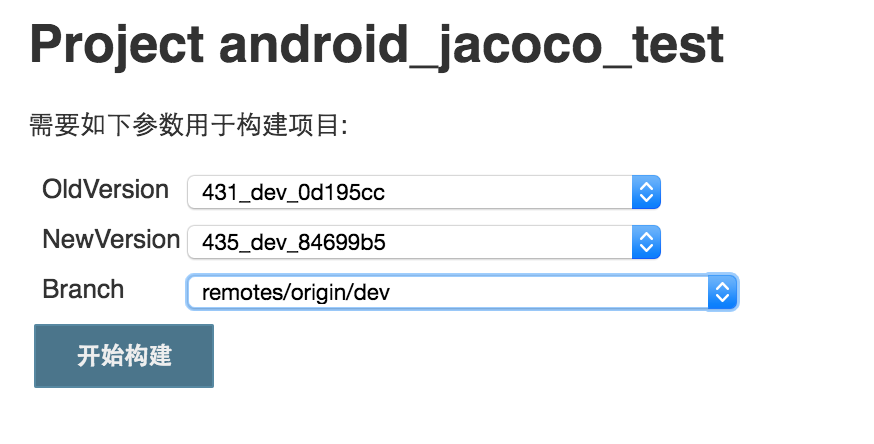

首先在job里添加了三个可选参数,用于选择新旧版本以及分支

构建时进行jacoco文件的合并和报告的生成,并调用我写的java程序改造报告.

# generate jacoco report
gradle jacocoMerge --stacktrace
gradle jacocoTestReport

# generate final report
java -jar ~/work/gitdiff.jar -r $OldVersion $NewVersion -j build/reports/jacoco/jacocoTestReport/html -p src/main/java
cp -r ~/work/.resources build/reports/jacoco/jacocoTestReport/

在程序中调用git diff, 并对结果进行解析

public HashMap<String,FileDiff> parseGitDiff()
     {
         HashMap<String,FileDiff> fileMap=new HashMap<String,FileDiff>();
         ArrayList<String> curFile=new ArrayList<String>();
         for (int i = 0; i < diffList.size(); i++) {
             curFile.add(diffList.get(i));
            if((i+1)==diffList.size()||diffList.get(i+1).startsWith(GIT_FLAG))
            {
                FileDiff diff=new FileDiff(curFile);
                fileMap.put(diff.getId(), diff);
                curFile=new ArrayList<String>();
            }
        }
         return fileMap;
     }

public ArrayList<LineDiff> parseLineDiff(ArrayList<String> files)
    {
        ArrayList<LineDiff> diff=new ArrayList<LineDiff>();
        boolean isStart=false;
        String frontLine="";
        for (int i = 0; i < block.size(); i++) {
            String line=block.get(i);


            if((i+1)<block.size()&&block.get(i+1).startsWith(MINUS_FLAG)&&!isStart)
            {
                isStart=true;
                frontLine=block.get(i);
            }
            if(line.startsWith(MINUS_FLAG)&&isStart)
            {
                LineDiff lineDiff=new LineDiff(frontLine, line,LineDiff.Type.Minus);
                diff.add(lineDiff);
            }
            if(i>1&&!block.get(i-1).startsWith(MINUS_FLAG)&&!line.startsWith(MINUS_FLAG))
            {
                frontLine=block.get(i-1);
                isStart=false;
            }
            if(line.startsWith(PLUS_FLAG))
            {
                LineDiff lineDiff=new LineDiff(frontLine,line,LineDiff.Type.Plus);
                diff.add(lineDiff);
            }

        }
        return diff;
    }

代码写的不太好,能力强的同学可以忽略~
将git diff提取出来后找到对应覆盖率html并写入.从而产生了一个只有代码变更文件的list
效果:

然后更改jacoco原来的prettify.js文件,对变更代码进行标记

function showDef (defLine) {
    var beginLine = defLine[0].substring(1);
    var between = defLine[1];

    var target = document.getElementsByClassName('linenums')[3];
    var defDom = document.createElement('div');

    var beginDom = target.getElementsByTagName('li')[beginLine - 1];
    with(defDom.style){
      position = 'absolute';
      left = '9px';
      top = beginDom.offsetTop + 16 + 'px';
      backgroundColor = '#0f0';
      opacity = '.3';
      width = '40px';
      height = 15 * between + 'px';
    };
    defDom.id = 'def' + beginLine;
    document.documentElement.appendChild(defDom);
  }

对变更代码进行跳转

function showDefLine () {
    var content = window['CONTENT'];
    var def = content.match(/@@(.*[^@@])/g);
    for (var i = def.length - 1; i >= 0; i--) {
      var _def = def[i].replace(/@@/g, '').split(' ');
      showDef(_def[2].split(','));
    };

    var sourceDom = document.getElementsByClassName('linenums')[1];
    sourceDom = sourceDom.getElementsByTagName('span');
    for (var i = sourceDom.length - 1; i >= 0; i--) {
      if(sourceDom[i].innerHTML === '@@'){
        sourceDom[i].parentNode.onclick = function () {
          document.body.scrollTop = document.getElementById('def' + this.getElementsByTagName('span')[9].innerHTML).offsetTop - 100;
        }
      }
    };
  }

修改后的效果如下,页面top显示diff代码

左侧绿色标记diff代码

最后,写的很匆忙,有点乱,勿怪~
